M890 Vein Finder

✨M890 Vein Finder

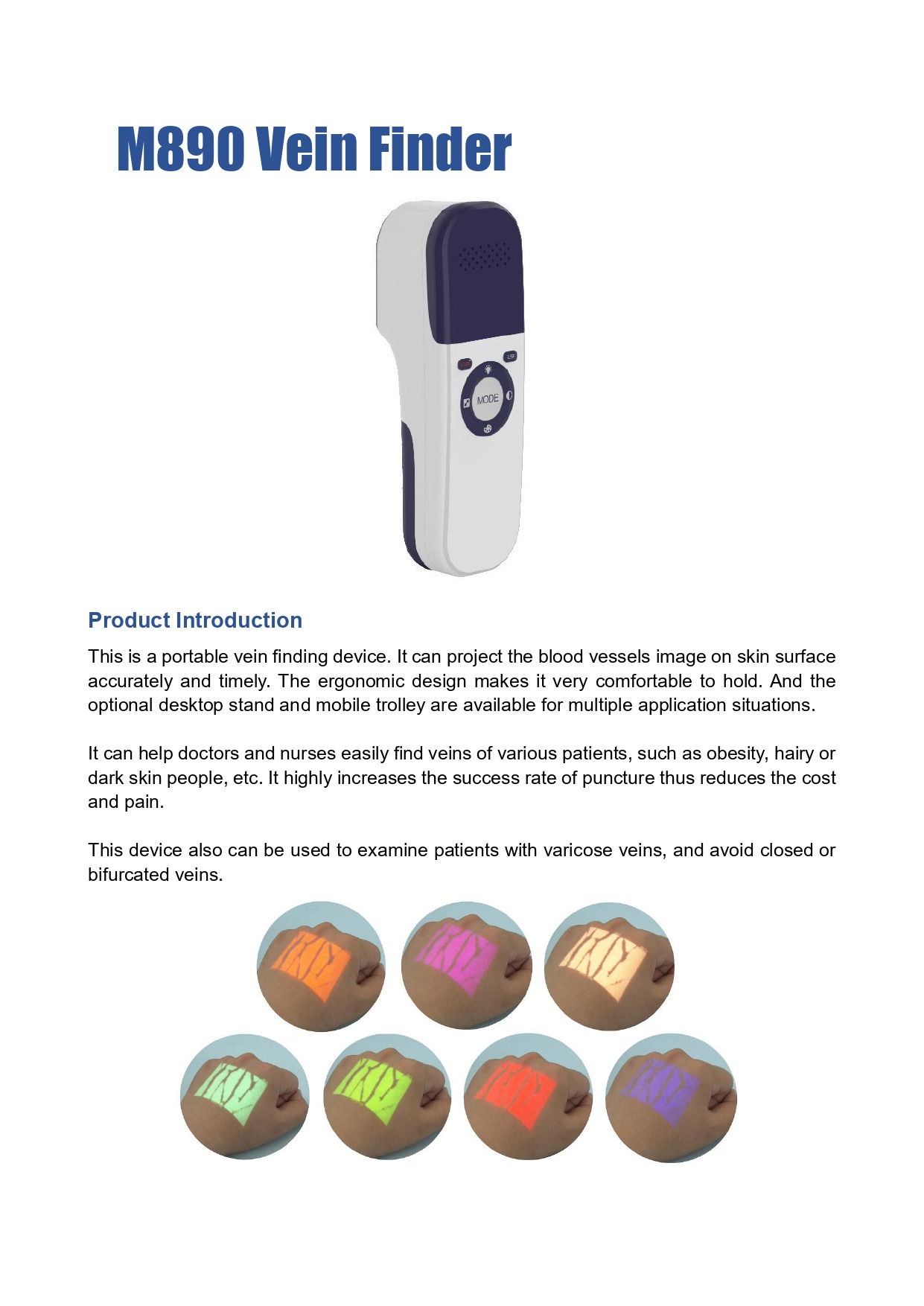

The M890 Vein Finder is a compact and easy-to-use medical device designed to assist healthcare professionals in quickly locating veins for injections, blood sampling, and IV access. Using advanced infrared light detection and DLP projection technology, the device projects a clear image of subcutaneous blood vessels directly onto the patient’s skin in real time.

It is especially effective for patients with difficult venous access, including obese patients, children, elderly patients, and individuals with dark or hairy skin. The ergonomic handheld design ensures comfortable operation, while optional table and mobile stands provide flexibility for different clinical environments.

The M890 also supports clinical assessment of varicose veins, helping clinicians avoid closed or bifurcated vessels. With multiple projection colors, high accuracy, low noise operation, and a rechargeable lithium battery, it is ideal for hospitals, clinics, emergency rooms, and laboratories.

✨ Key Features:

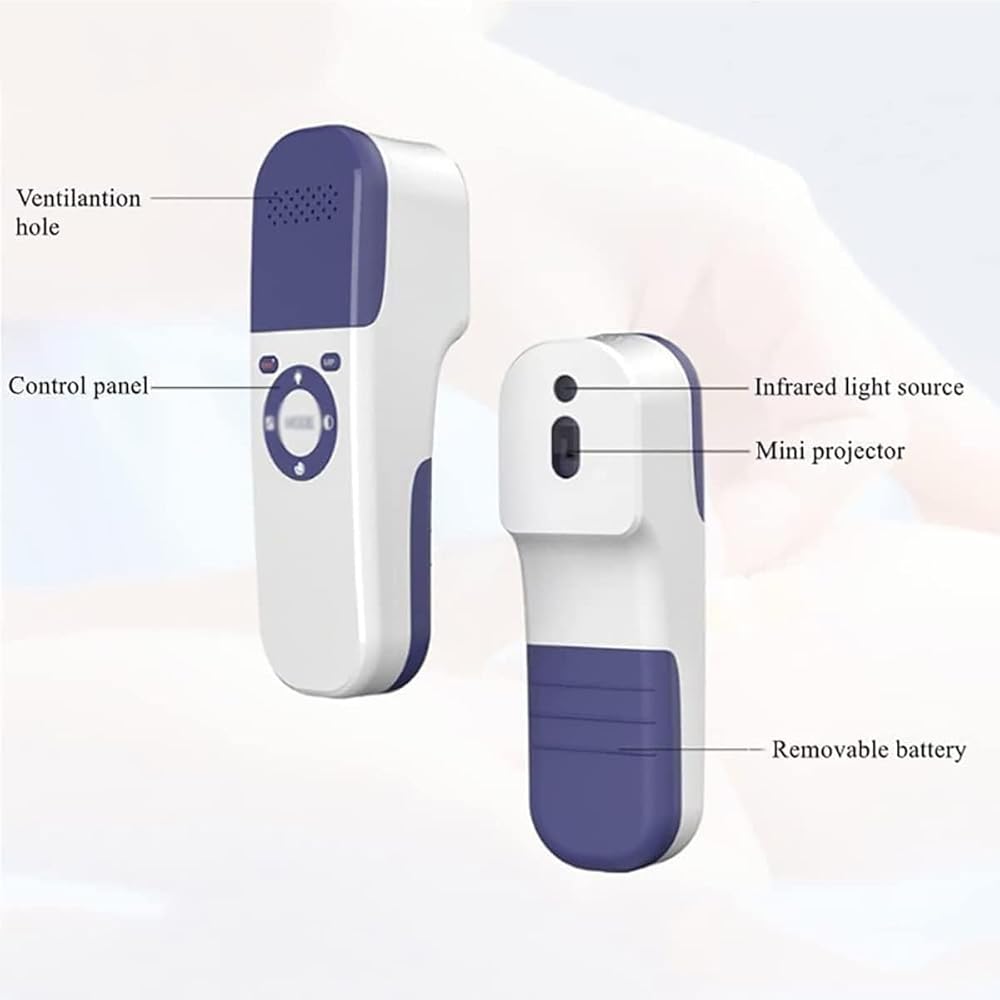

• Portable and ergonomic handheld design

• Infrared light detection with no harm to human body

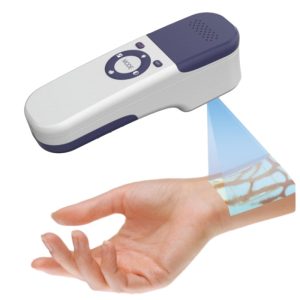

• Real-time vein image projection on skin surface

• High accuracy for vein position and resolution (±0.5 mm)

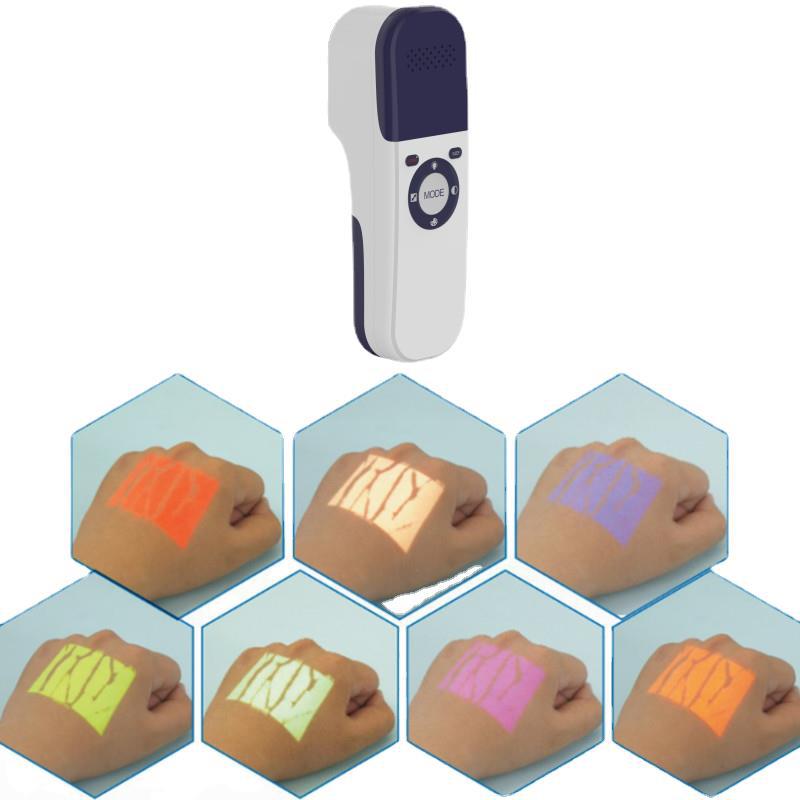

• Multiple projection color modes for better visibility

• Low working noise (≤40 dB)

• Rechargeable lithium battery with power display

• Optional table stand and mobile trolley stand

• Suitable for difficult vein access patients

📊 Specifications:

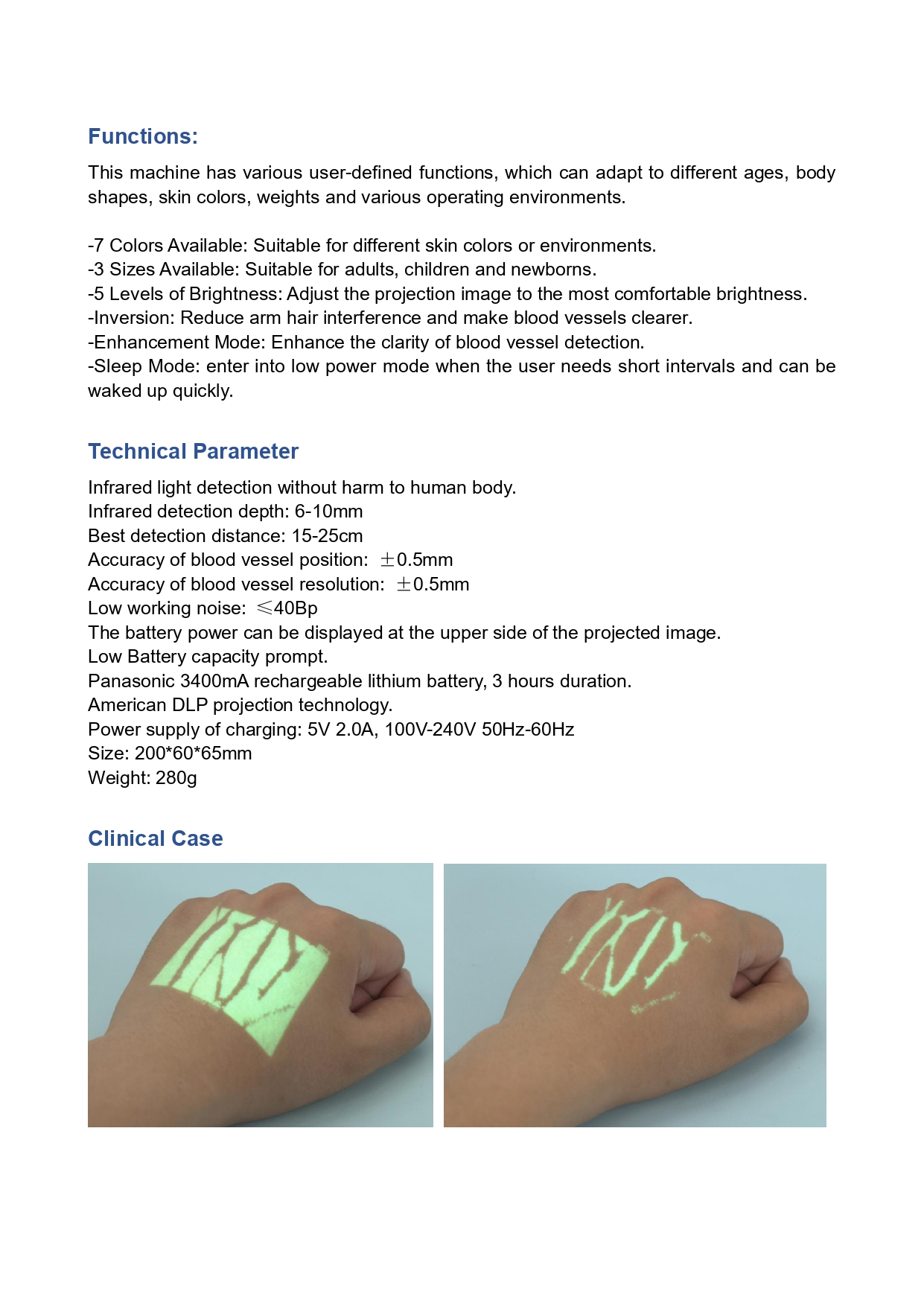

Technical Parameters

• Detection Method: Infrared light imaging

• Detection Depth: 6–10 mm

• Best Detection Distance: 15–25 cm

• Vein Position Accuracy: ±0.5 mm

• Vein Resolution Accuracy: ±0.5 mm

• Projection Technology

• : American DLP technology

• Noise Level: ≤40 dB

• Battery: Panasonic 3400mAh rechargeable lithium battery

• Battery Duration: Up to 3 hours

• Battery Display: Shown on projected image

• Low Battery Alert: Yes

Power & Size

• Charging Power Supply: 5V / 2.0A

• Input Voltage: 100–240V, 50–60Hz

• Dimensions: 200 × 60 × 65 mm

• Weight: 280 g

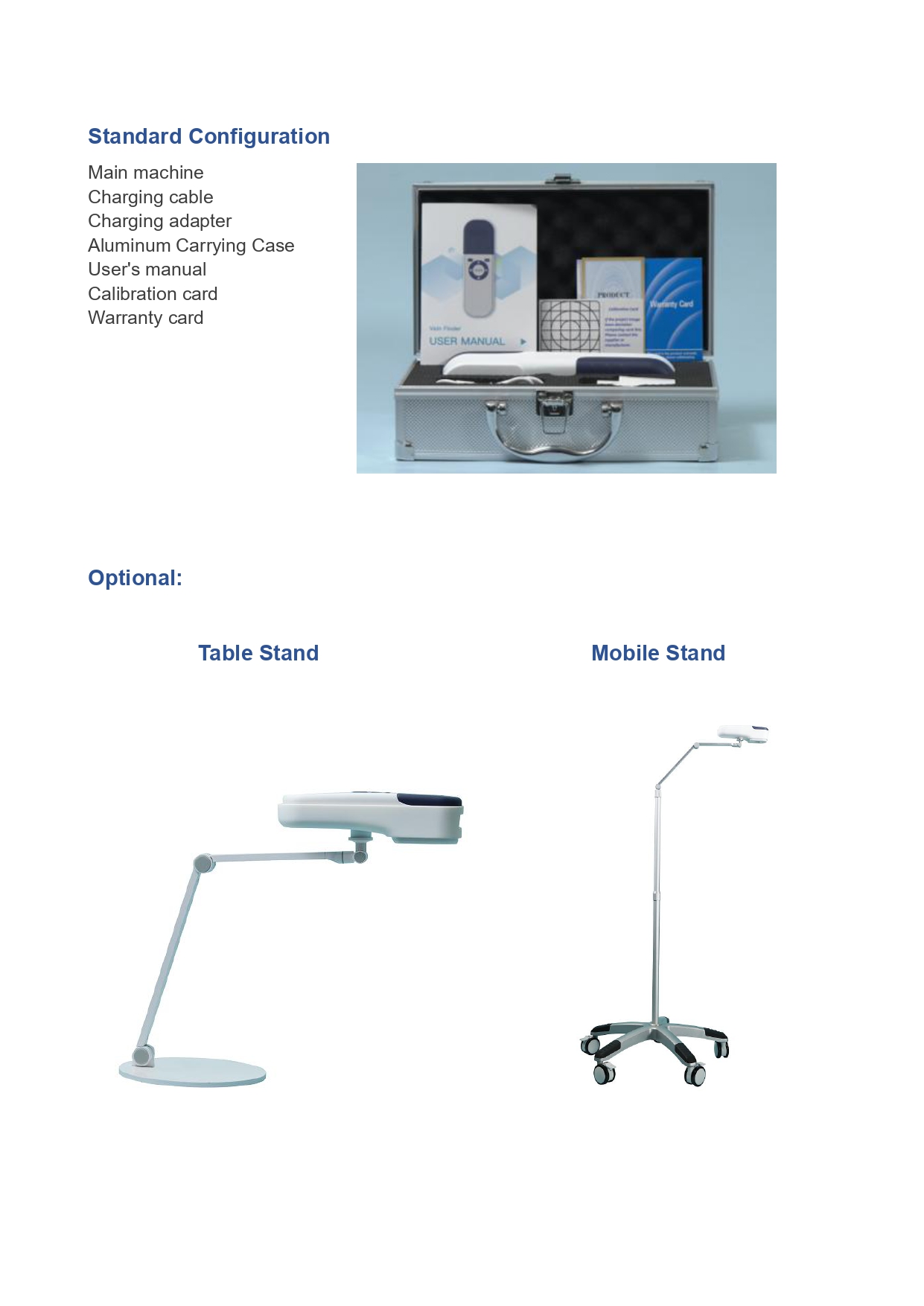

Optional Accessories

• Table Stand

• Mobile Stand / Trolley
