Multi-Parameter Patient Monitor – Model: IP-4050

Multi-Parameter Patient Monitor

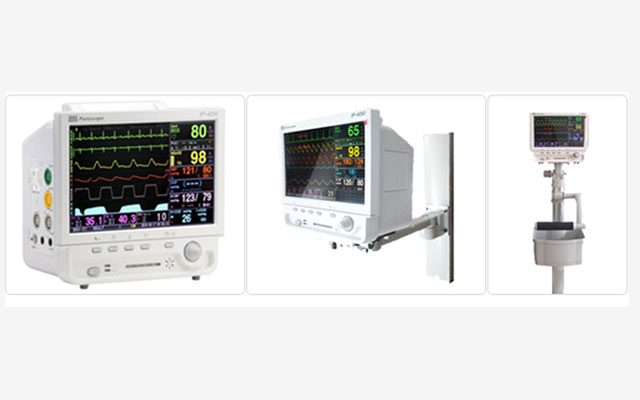

The IP-4050 Multi-Parameter Patient Monitor by Infunix Technology is a compact, high-performance device designed for hospitals, ICUs, and emergency care. It features a 10.4-inch color LCD displaying up to 6 waveforms and monitors ECG, SpO₂, NIBP, respiration, temperature, optional IBP and optional EtCO₂. With arrhythmia detection, ST-segment analysis, and pacemaker detection, it ensures accurate patient monitoring. The device offers 72-hour data storage, built-in alarms, optional thermal printing, its 3-hour battery life makes it ideal for transport and continuous monitoring.

Key Features:

• Display: 10.4-inch widescreen (16:9) TFT color LCD with an ultra-wide viewing angle, capable of displaying up to six waveforms simultaneously.
• Monitoring Parameters:
  • ECG (Electrocardiogram) – 3/5-lead ECG monitoring with detection of 12 types of arrhythmias.
  • SpO₂ (Oxygen Saturation) – Measures blood oxygen levels with high precision.
  • NIBP (Non-Invasive Blood Pressure) – Automated Oscillo metric method for accurate blood pressure readings.
  • IBP (Invasive Blood Pressure, 2 channels) – For direct arterial and venous pressure measurement.
  • Respiration (RESP) – Derived from the ECG leads to detect respiratory rate.
  • Temperature (2 channels) – Dual temperature probes for continuous body temperature monitoring.
  • EtCO₂ (End-Tidal Carbon Dioxide, optional) – Capnography monitoring via side stream module.
• Alarm System: Visual and audible alarms for critical parameter deviations.
• Arrhythmia Detection: Detects 12 types of arrhythmias, displays premature ventricular contractions (PVC) count, and monitors ST-segment levels for cardiac conditions.
• User Interface: Intuitive and user-friendly menu with touchscreen or button navigation for easy operation.
• Printing: Optional built-in thermal printer for real-time waveform and trend reports.
• Connectivity: Multiple connectivity options, including USB, LAN, and Wi-Fi (optional) for data transfer and integration with hospital networks.
• Battery Backup: Rechargeable lithium-ion battery with approximately 3 hours of continuous operation on a full charge.

Applications

• Hospital Wards & ICUs – Continuous vital sign monitoring for critical care patients.
• Emergency Rooms & Operating Theaters – Reliable real-time data for medical interventions.
• Ambulances & Transport – Portable design for patient monitoring in transit

Why Buy the IP-4050 Multi-Parameter Patient Monitor?

The IP-4050 Multi-Parameter Patient Monitor is an efficient, versatile, and cost-effective solution for hospitals, ICUs, operating rooms, and emergency care. Here’s why it’s a great choice:

1. Comprehensive Patient Monitoring

• Tracks ECG, SpO₂, NIBP, IBP, Respiration, Temperature, and optional EtCO₂
• Arrhythmia detection & ST-segment analysis for cardiac monitoring
• Pacemaker detection ensures accurate ECG readings in cardiac patients

2. High-Quality Display & User-Friendly Interface

• 10.4-inch widescreen TFT color LCD with up to 6 waveforms
• Customizable display & alarm settings for easy monitoring

3. Advanced Connectivity & Data Storage

• 72-hour trend data storage for continuous patient monitoring
• Supports USB, LAN, and optional Wi-Fi for data transfer & central monitoring
• Optional built-in thermal printer for immediate report printing

4. Portability & Battery Backup

• Lightweight and compact (3.5 kg) for easy transport
• 3-hour battery life, ideal for patient transport and backup during power failures

5. Reliable & Cost-Effective

• Affordable compared to high-end monitors without compromising essential features
• Suitable for hospitals, clinics, ambulances, and home care settings
