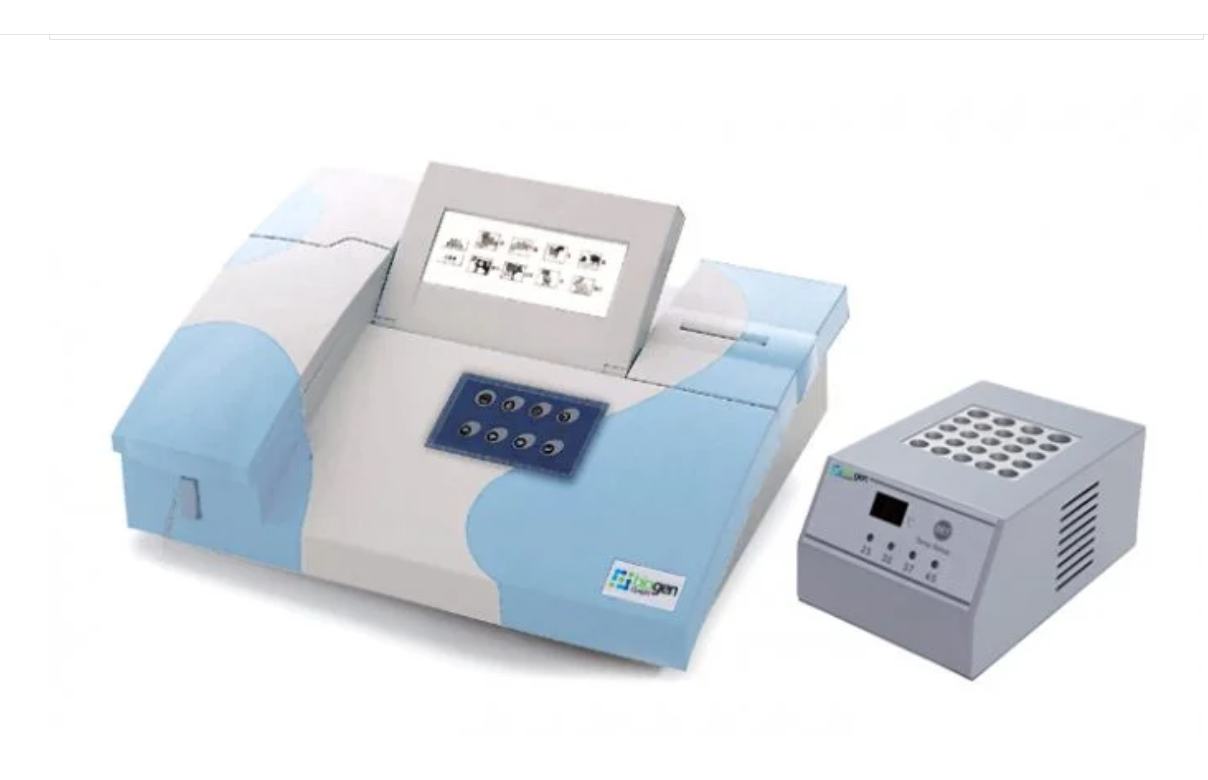

Semi-Auto Chemistry Analyzer, Biogen 5500

  • Please Call for Price and Your Specification 01973092348

  • Product: Semi-Auto Chemistry Analyzer, Biogen
  • Model: 5500
  • Brand: Biogen
  • Origin: China
  • Condition: New
  • Warranty: One year
Biogen 5500 is a smart and efficient semi-automatic chemistry analyzer with a Windows-based interface, real-time curve display, powerful QC features, and compatibility with both cuvette and flow cell systems.

+8801973092345/01973092348

Free Delivery

Free Delivery & Installation

Secure Payment

100% Secure Online Payment

Dedicated Support

Dedicated Online & Offline Support

Semi-Auto Chemistry Analyzer, Biogen 5500

The Biogen 5500 Semi-Auto Chemistry Analyzer is engineered for precision, reliability, and ease of use in medical laboratories. Featuring an intuitive Windows-based operating system, large 7” color LCD display, and mouse input, it ensures smooth navigation and control. Its open reagent system supports both flow cell and cuvette modes, while offering optional closed-system functionality upon request.
With multiple analytical modes (kinetic, fixed time, endpoint, linear/non-linear calibration), real-time monitoring, and powerful QC tools (Westgard rules, Levey-Jennings plots), it enhances diagnostic accuracy. Its auto self-check, long-lasting lamp, and easy maintenance make it an ideal choice for clinical biochemistry labs without frequent need for technical service.

Key Features:

  •  Easy Windows-based operation with mouse and 7” color LCD
  •  Open reagent system for flow cell and cuvette (closed system optional)
  •  Real-time curve monitoring for test reliability
  •  Flexible analytical modes: kinetic, fixed time, endpoint with/without blanks
  •  Powerful QC tools: Westgard Multirole, Levey-Jenning’s plot, 2 controls/test
  •  160 programmable test protocols with memory for 500+ results
  •  Auto power-on self-check & easy lamp/tube replacement – no engineer needed
  •  Built-in and external printer options for patient reports
  •  Energy-saving design with extended lamp life

Semi-Auto Chemistry Analyzer Semi-Auto Chemistry Analyzer



👉 Click here to contact us.

Product Specifications: Semi-Auto Chemistry Analyzer, Biogen 5500

  • Model: 5500

  • Brand: Biogen
  • Photometric Range: 0.500 ~ 3.000 Abs

  • Resolution: 0.001 Abs (displayed), 0.0001 Abs (calculated)

  • Light Source: Halogen Lamp (6V/10W)

  • Wavelengths: 340, 405, 500, 546, 578, 620, 670 nm (+1 optional filter)

  • Wavelength Accuracy: ±1 nm

  • Band Width: 8 nm

  • Aspirate Volume: 100 – 300 μL

  • Carryover: < 0.1%

  • Memory: 160 test protocols; stores 500+ results

  • Interfaces: RS-232, PSTN (optional)

  • Flow Cell: 25 μL metal-quartz

  • Cuvette Mode: 12.5mm x 12.5mm cuvette (optional)

  • Temperature Settings: 25°C, 30°C, 37°C ±0.1°C

  • Display: 7-inch color LCD

  • Input Devices: Mouse, optional external keyboard

  • Output Devices: Built-in printer or optional external printer

  • Dimensions (L×W×H): 460 × 330 × 140 mm

  • Net Weight: 8 kg
